DOT Air Brake Push-In Fittings
DOT Air Brake Push-In Fittings Manufacturer

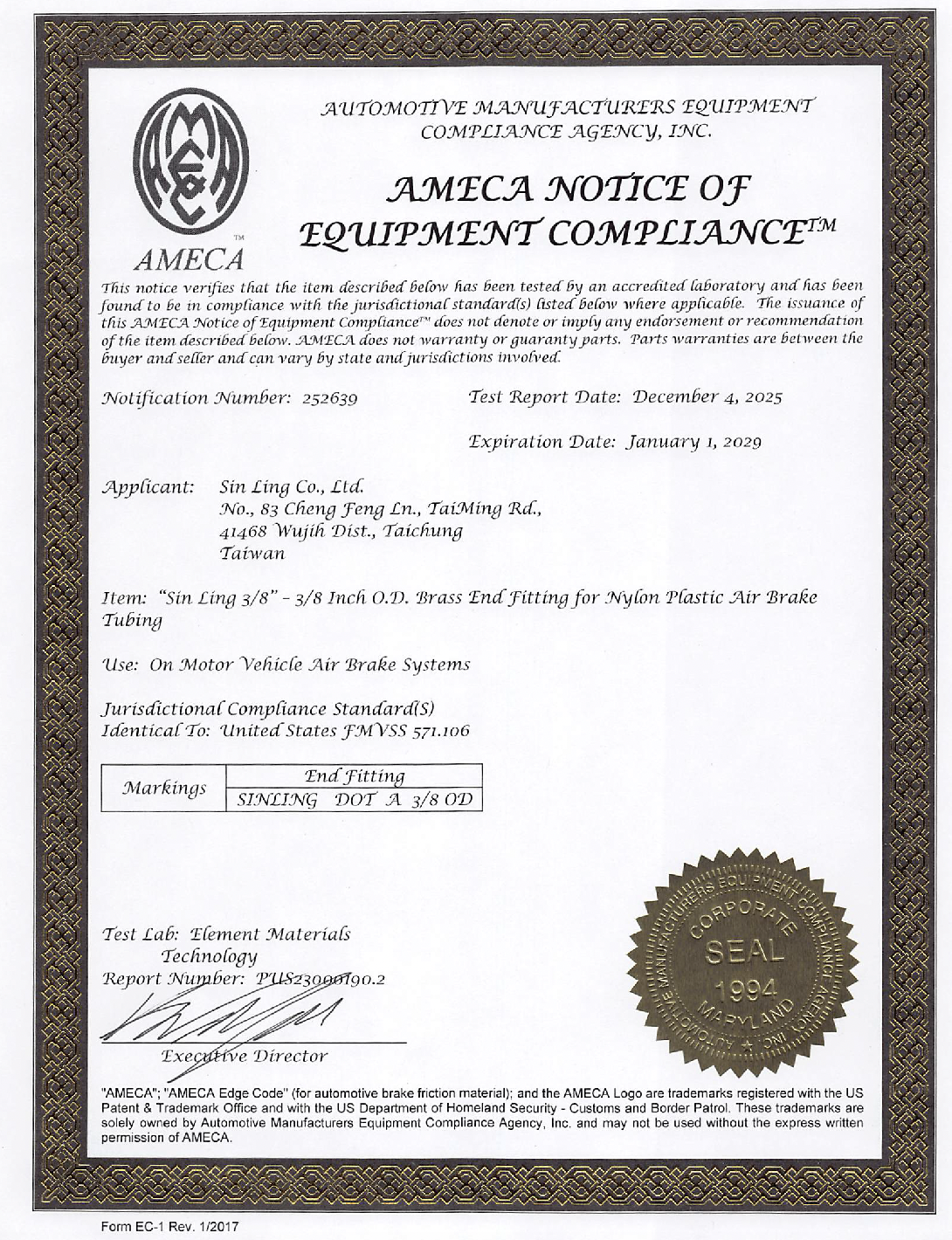

FMVSS 571.106 Certified
As a premier manufacturer of DOT air brake components, Sin Ling specializes in producing high-performance brass DOT air brake fittings (Raccords de freins à air / エアブレーキ継手 / Accesorios para frenos de aire) and push in fittings (Raccords instantanés / ワンタッチ継手 / Accesorios instantáneos) for heavy-duty trucks, trailers, buses, and off-road commercial vehicles. Our entire range of DOT push to connect air fittings is fully compliant with FMVSS 571.106 and engineered for seamless installation with SAE J844 Type A & Type B nylon tubing, ensuring reliable performance across all regulated pneumatic brake systems.
Validated for Frame-to-Axle Applications & 100% Taiwan Manufacturing
Unlike many standard commercial fittings that only meet general application levels, Sin Ling's components are tested and validated to meet the demanding Frame-to-Axle requirements of FMVSS 571.106. Furthermore, we maintain a strictly controlled 100% Taiwan manufacturing region ratio, providing robust supply chain resilience and reliable quality control for global OEMs.

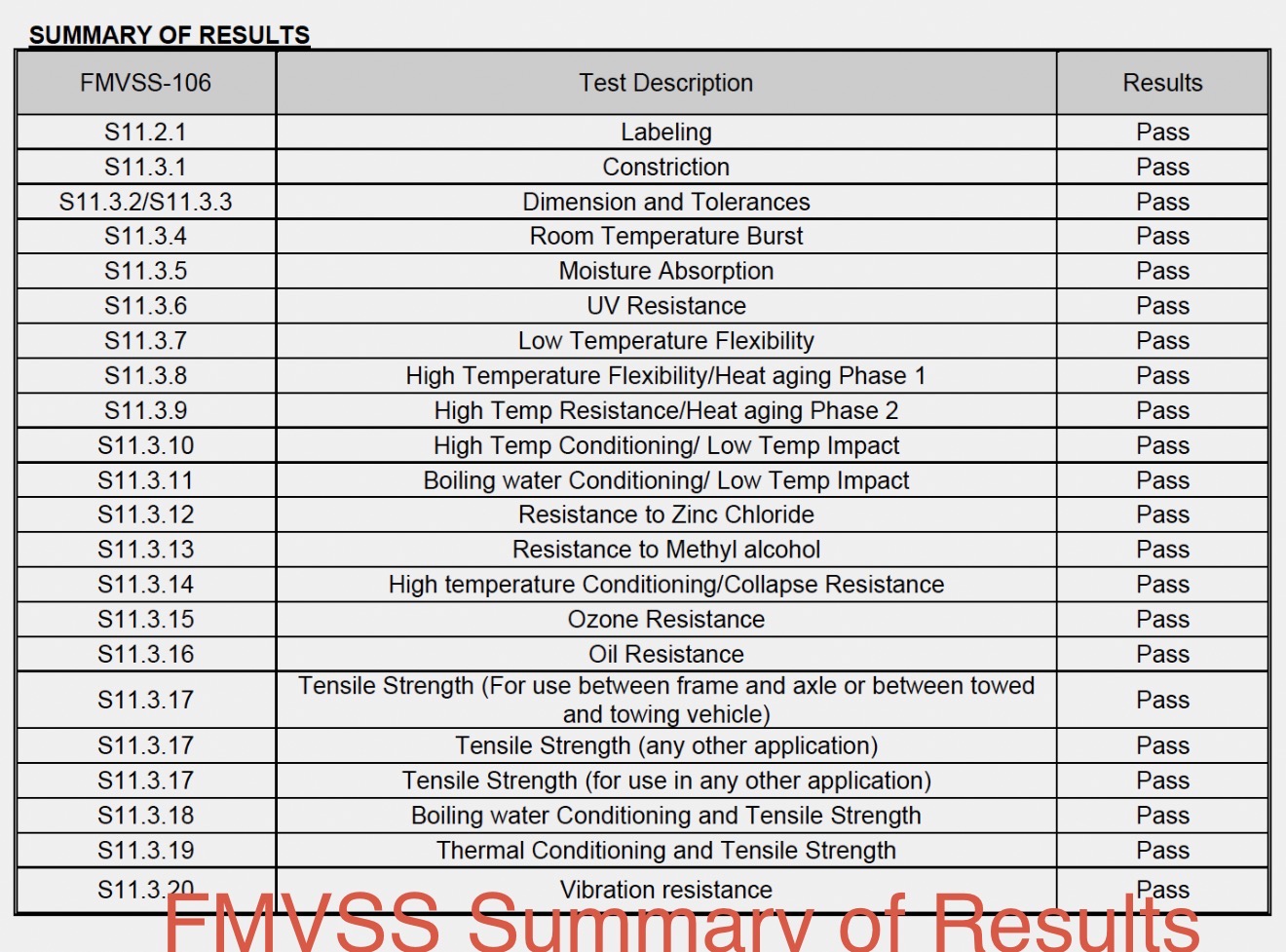

- Full Test Coverage: All required performance tests were completed and passed, including temperature conditioning, chemical resistance, vibration resistance, and tensile strength validation.

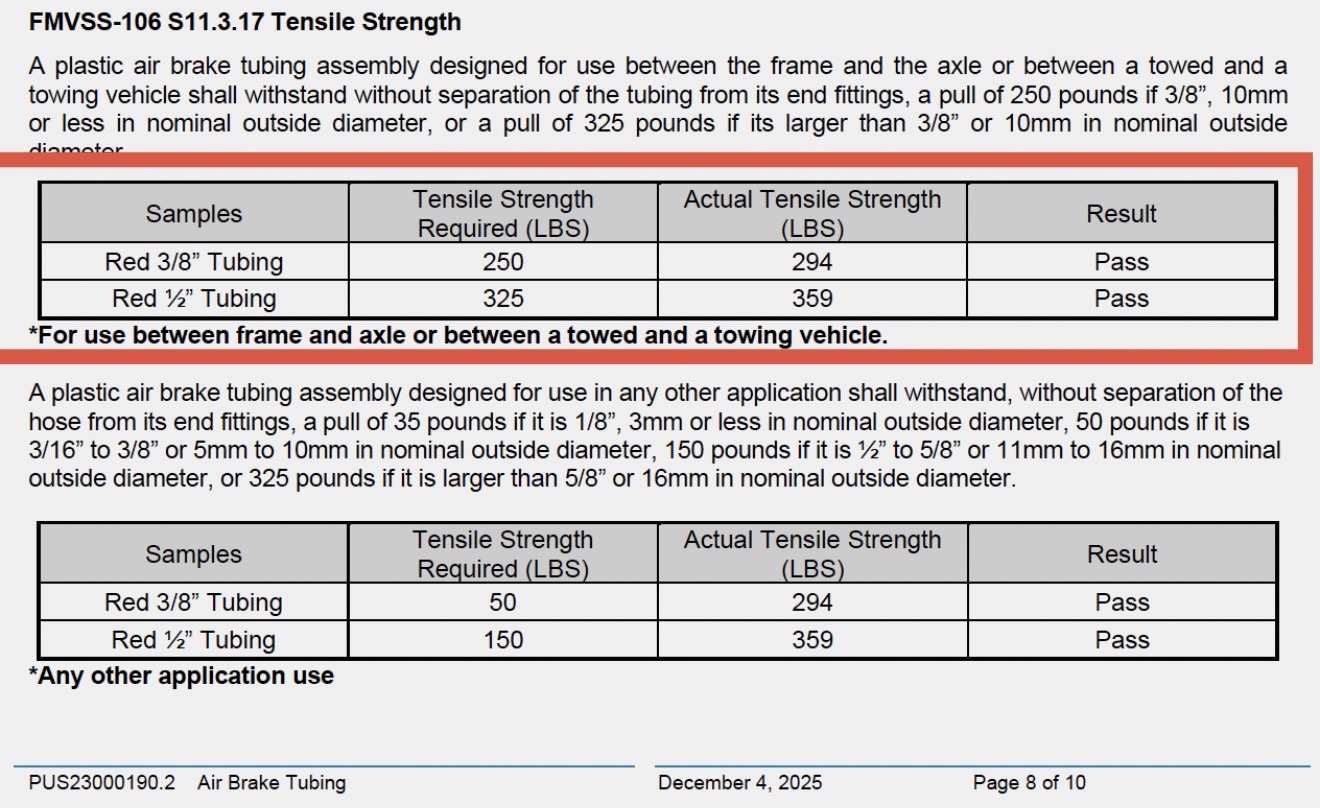

- Superior Retention: Our fittings demonstrate substantially higher pull-out strength, providing an extra safety margin for towing vehicles and axles under intense vibration.

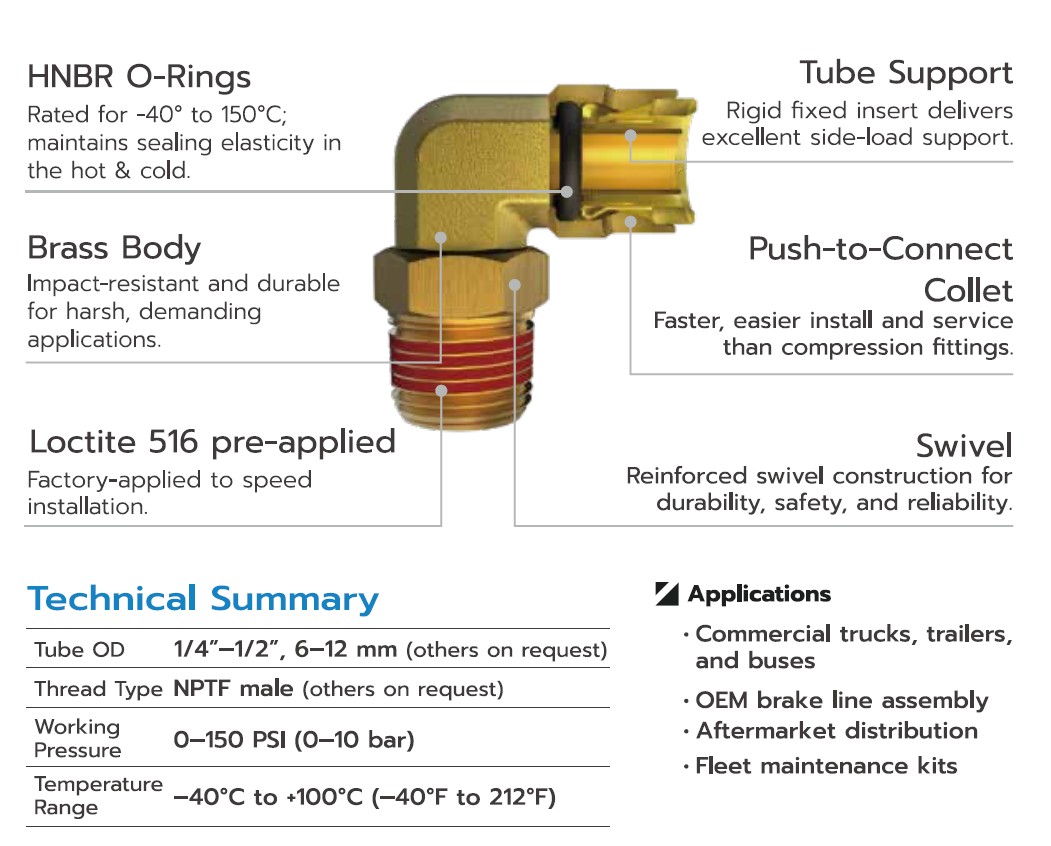

Tested for Durability: HNBR O-Rings & In-House Machining
Sin Ling stands out as a quality-focused push in fittings factory by prioritizing long-term durability over standard commercial grades.
- Premium Sealing: Every DOT air brake fitting uses a premium HNBR O-ring, offering superior resistance to high temperature, ozone, and chemical exposure—far outperforming standard NBR O-rings used by generic automotive suppliers.
- Precision CNC: Every critical component is manufactured in-house using multi-spindle CNC machines. As a dedicated dot air line fittings specialist, we control the entire process to ensure exact tolerances and reliable sealing geometry.

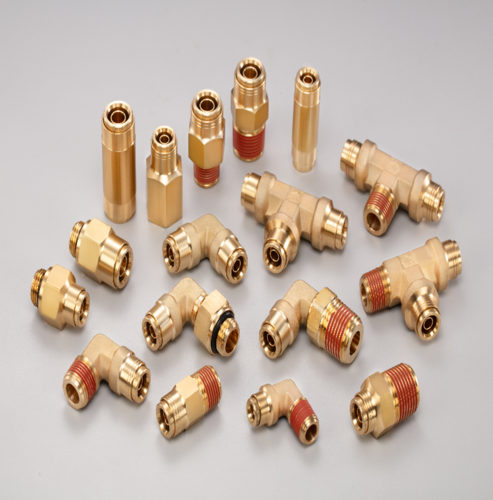

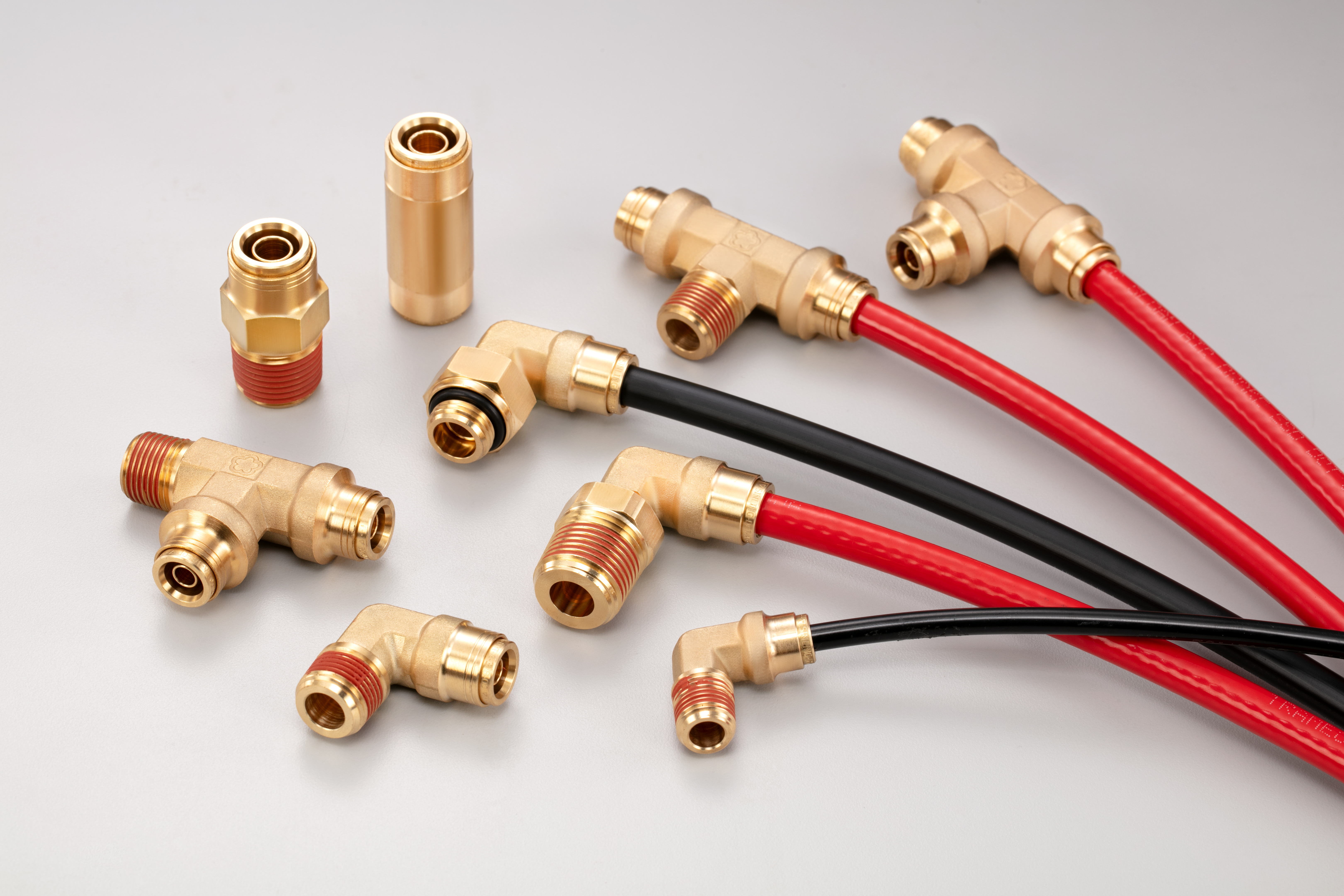

Complete DOT Push-In Fitting Range
Our DOT series includes a full selection of one touch fittings optimized for high flow efficiency and leak prevention:
- Straight unions & Bulkhead connectors
- Male & female connectors
- Reducing connectors
- Elbows (45° / 90°) and Tees
- Threaded variations (NPT, NPTF)
Frequently Asked Questions (FAQ)
Q1: Are Sin Ling's fittings certified for commercial air brake systems?
Yes. As a compliant manufacturer, all Sin Ling DOT push to connect air fittings meet FMVSS 571.106 and DOT requirements for pneumatic air brake systems.
Q2: Which tubing types are compatible with these push in fittings?
Sin Ling dot air line fittings are specifically designed and tested for use with SAE J844 Type A and Type B nylon air brake tubing.
Q3: Why does Sin Ling offer HNBR O-rings for durability?
Sin Ling utilizes premium HNBR O-rings to ensure superior sealing resistance to high temperatures, ozone, and chemical exposure in demanding automotive environments.
Q4: Can Sin Ling support OEM manufacturing and long-term supply?
Absolutely. Sin Ling is an experienced push in fittings factory providing dedicated OEM, Tier-1, and aftermarket supply programs with highly flexible CNC production capabilities.
