CONNECTOR

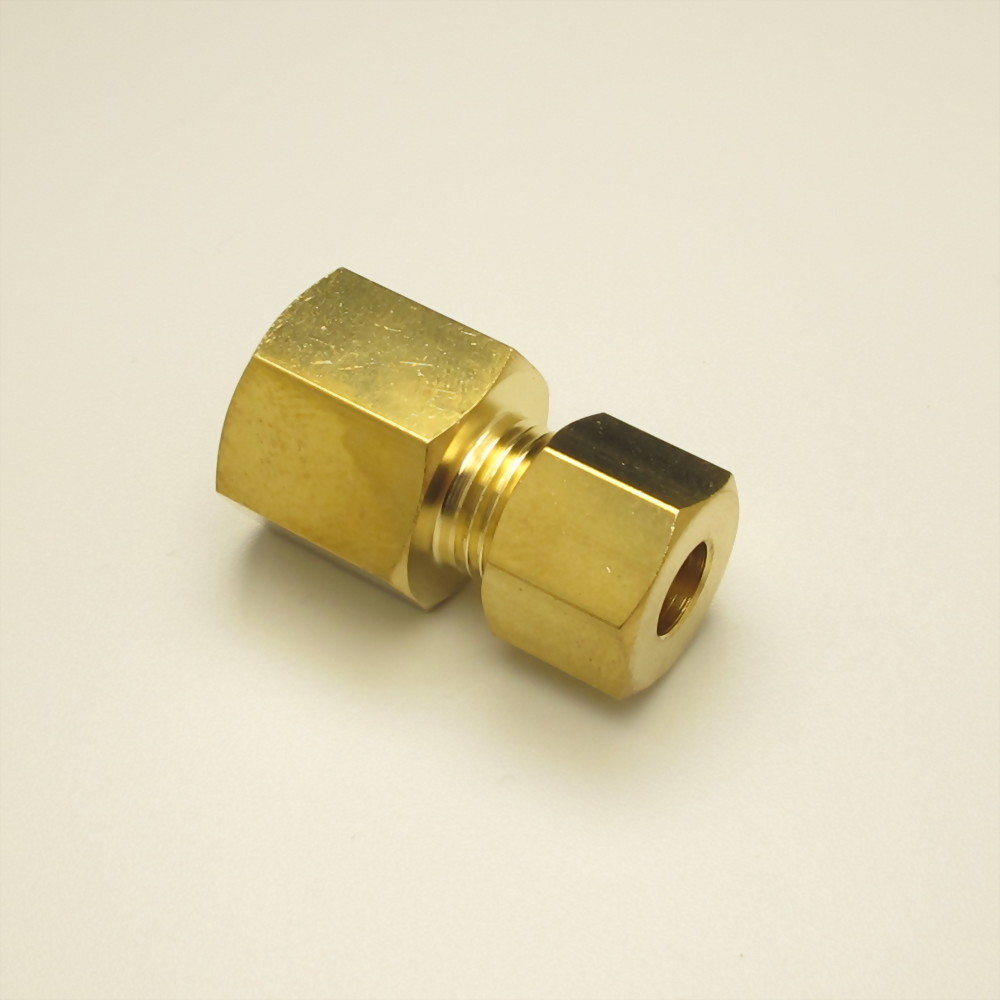

S06 內牙接頭-公制 FEMALE CONNECTOR

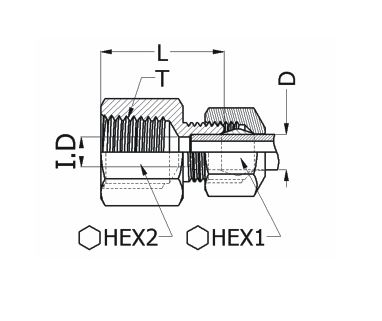

| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | ||||
| S06-CM1004 | 1/8 | 4 | 5/16-24 | 3.5 | 19 | 9.5 | 12 |
| S06-CM1006 | 1/8 | 6 | 7/16-24 | 5.5 | 20 | 14 | 12 |
| S06-CM1025 | 1/8 | 8 | 1/2-24 | 7 | 20 | 16 | 12.7 |
| S06-CM2006 | 1/4 | 6 | 7/16-24 | 5.5 | 23 | 14 | 17 |
| S06-CM2025 | 1/4 | 8 | 1/2-24 | 7 | 23.5 | 16 | 17 |
| S06-CM2010 | 1/4 | 10 | 9/16-24 | 8 | 24 | 17 | 17 |
| S06-CM2012 | 1/4 | 12 | 11/16-20 | 11.4 | 22.5 | 21 | 19 |
| S06-CM3006 | 3/8 | 6 | 7/16-24 | 5.5 | 23 | 14 | 21 |
| S06-CM3025 | 3/8 | 8 | 1/2-24 | 7 | 23.5 | 16 | 21 |
| S06-CM3010 | 3/8 | 10 | 9/16-24 | 8 | 24 | 17 | 21 |
| S06-CM3012 | 3/8 | 12 | 11/16-20 | 11 | 24.5 | 21 | 21 |
| S06-CM4006 | 1/2 | 6 | 7/16-24 | 5.5 | 26 | 14 | 24 |
| S06-CM4025 | 1/2 | 8 | 1/2-24 | 7.5 | 26.5 | 16 | 24 |
| S06-CM4012 | 1/2 | 12 | 11/16-20 | 11 | 27.5 | 21 | 24 |
| S06-CM40M15 | 1/2 | 15 | 13/16-18 | 14 | 29.5 | 24 | 24 |
S06 內牙接頭-英制 FEMALE CONNECTOR
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | ||||
| S06-CM1015 | 1/8 | 3/16 | 3/8-24 | 4 | 19.5 | 12 | 12 |
| S06-CM102 | 1/8 | 1/4 | 7/16-24 | 5.5 | 20 | 14 | 12 |
| S06-CM1025 | 1/8 | 5/16 | 1/2-24 | 7 | 20 | 16 | 12.7 |
| S06-CM103 | 1/8 | 3/8 | 9/16-24 | 8.4 | 20 | 17 | 15 |
| S06-CM202 | 1/4 | 1/4 | 7/16-24 | 5.5 | 23 | 14 | 17 |
| S06-CM2025 | 1/4 | 5/16 | 1/2-24 | 7 | 23.5 | 16 | 17 |
| S06-CM203 | 1/4 | 3/8 | 9/16-24 | 8 | 24 | 17 | 17 |
| S06-CM204 | 1/4 | 1/2 | 11/16-20 | 11.4 | 22.5 | 21 | 19 |
| S06-CM302 | 3/8 | 1/4 | 7/16-24 | 5.5 | 23 | 14 | 21 |
| S06-CM3025 | 3/8 | 5/16 | 1/2-24 | 7 | 23.5 | 16 | 21 |
| S06-CM303 | 3/8 | 3/8 | 9/16-24 | 8 | 24 | 17 | 21 |
| S06-CM304 | 3/8 | 1/2 | 11/16-20 | 11 | 24.5 | 21 | 21 |
| S06-CM305 | 3/8 | 5/8 | 13/16-18 | 14 | 25.5 | 24 | 21 |
| S06-CM402 | 1/2 | 1/4 | 7/16-24 | 5.5 | 26 | 14 | 24 |
| S06-CM4025 | 1/2 | 5/16 | 1/2-24 | 7.5 | 26.5 | 16 | 24 |
| S06-CM403 | 1/2 | 3/8 | 9/16-24 | 8 | 27 | 17 | 24 |
| S06-CM404 | 1/2 | 1/2 | 11/16-20 | 11 | 27.5 | 21 | 24 |
