MALE ADAPTER

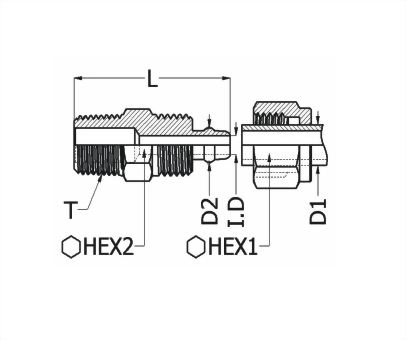

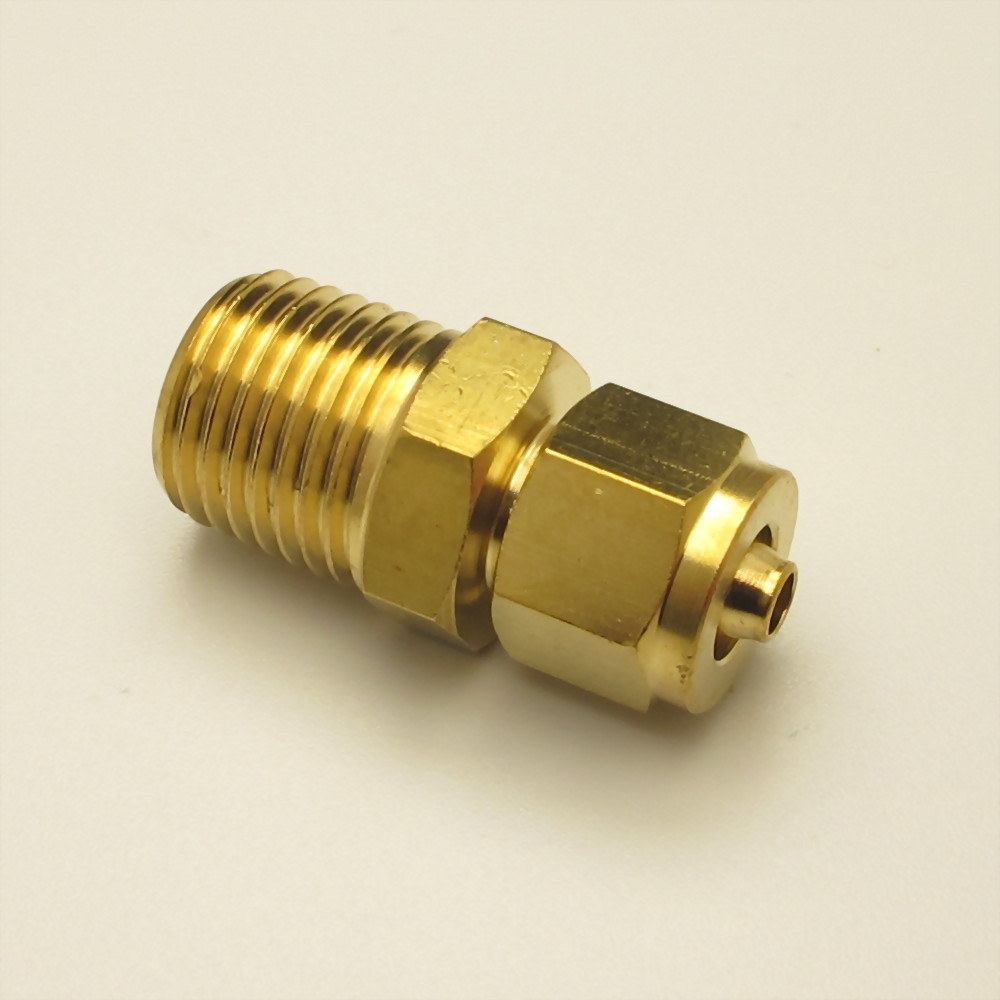

N03 外牙接頭 Male Connector
| 產品編號 | 管牙T | 適用管徑D1 | 直牙 | D2 | L | SW1 | SW2 | I.D. |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| N03-C05004 | 1/4-28UNF | 4 | M7*1.0 | 3.75 | 21.5 | 9 | 8 | 1.8 |
| N03-C05006 | 1/4-28UNF | 6 | M10-24 | 5.55 | 25 | 12 | 10 | 3 |
| N03-C0506 | M5 | 6 | M10-24 | 5.55 | 24.2 | 12 | 10 | 3 |
| N03-C1004 | 1/8 | 4 | M7*1.0 | 3.75 | 23.5 | 9 | 10 | 1.8 |
| N03-C1006 | 1/8 | 6 | M10-24 | 5.55 | 26.5 | 12 | 10 | 3 |
| N03-C1025 | 1/8 | 8 | 7/16-24 | 6.9 | 26.5 | 14 | 12 | 4.5 |
| N03-C1010 | 1/8 | 10 | 1/2-24 | 8.25 | 28 | 15 | 12.7 | 5.2 |
| N03-C2004 | 1/4 | 4 | M7*1.0 | 3.75 | 27 | 9 | 14 | 1.8 |
| N03-C2006 | 1/4 | 6 | M10-24 | 5.55 | 30 | 12 | 14 | 3 |
| N03-C2025 | 1/4 | 8 | 7/16-24 | 6.9 | 30 | 14 | 14 | 4.5 |
| N03-C2010 | 1/4 | 10 | 1/2-24 | 8.25 | 31.5 | 15 | 14 | 5.2 |
| N03-C2012 | 1/4 | 12 | M17-24 | 10.1 | 34 | 19 | 17 | 7 |
| N03-C3006 | 3/8 | 6 | M10-24 | 5.55 | 30 | 12 | 17 | 3 |
| N03-C3025 | 3/8 | 8 | 7/16-24 | 6.9 | 30 | 14 | 17 | 4.5 |
| N03-C3010 | 3/8 | 10 | 1/2-24 | 8.25 | 31.5 | 15 | 17 | 5.2 |
| N03-C3012 | 3/8 | 12 | M17-24 | 10.1 | 34 | 19 | 17 | 7 |
| N03-C4006 | 1/2 | 6 | M10-24 | 5.55 | 33.5 | 12 | 21 | 3 |
| N03-C4025 | 1/2 | 8 | 7/16-24 | 6.9 | 33.5 | 14 | 21 | 4.5 |
| N03-C4010 | 1/2 | 10 | 1/2-24 | 8.25 | 35 | 15 | 21 | 5.2 |
| N03-C4012 | 1/2 | 12 | M17-24 | 10.1 | 37.5 | 19 | 21 | 7 |
N03 外牙接頭-英制 MALE CONNECTOR
| 產品編號 | 管牙T | 適用管徑D1 | 直牙 | D2 | L | SW1 | SW2 | I.D. |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| N03-C0502 | 1/4-28UNF | 1/4 | M10-24 | 5.55 | 25 | 12 | 10 | 3 |
| N03-C052 | M5 | 1/4 | M10-24 | 5.55 | 24.2 | 12 | 10 | 3 |
| N03-C102 | 1/8 | 1/4 | M10-24 | 5.55 | 26.5 | 12 | 10 | 3 |
| N03-C1025 | 1/8 | 5/16 | 7/16-24 | 6.9 | 26.5 | 14 | 12 | 4.5 |
| N03-C103 | 1/8 | 3/8 | 1/2-24 | 8.25 | 28 | 15 | 12.7 | 5.2 |
| N03-C202 | 1/4 | 1/4 | M10-24 | 5.55 | 30 | 12 | 14 | 3 |
| N03-C2025 | 1/4 | 5/16 | 7/16-24 | 6.9 | 30 | 14 | 14 | 4.5 |
| N03-C203 | 1/4 | 3/8 | 1/2-24 | 8.25 | 31.5 | 15 | 14 | 5.2 |
| N03-C204 | 1/4 | 1/2 | M17-24 | 10.7 | 33.5 | 19 | 17 | 8 |
| N03-C302 | 3/8 | 1/4 | M10-24 | 5.55 | 30 | 12 | 17 | 3 |
| N03-C3025 | 3/8 | 5/16 | 7/16-24 | 6.9 | 30 | 14 | 17 | 4.5 |
| N03-C303 | 3/8 | 3/8 | 1/2-24 | 8.25 | 31.5 | 15 | 17 | 5.2 |
| N03-C304 | 3/8 | 1/2 | M17-24 | 10.7 | 33.5 | 19 | 17 | 8 |
| N03-C402 | 1/2 | 1/4 | M10-24 | 5.55 | 33.5 | 12 | 21 | 3 |
| N03-C4025 | 1/2 | 5/16 | 7/16-24 | 6.9 | 33.5 | 14 | 21 | 4.5 |
| N03-C403 | 1/2 | 3/8 | 1/2-24 | 8.25 | 35 | 15 | 21 | 5.2 |
| N03-C404 | 1/2 | 1/2 | M17-24 | 10.7 | 37 | 19 | 21 | 8 |
