Male Elbow

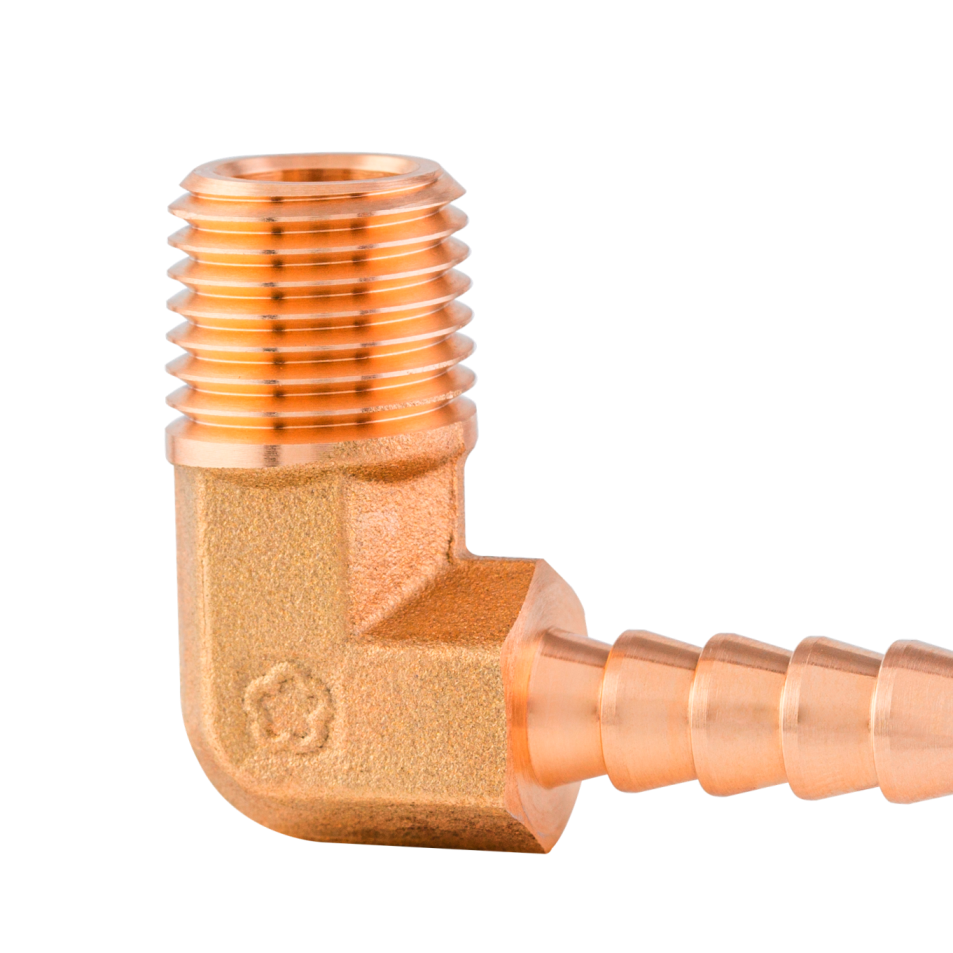

A01 外牙插心彎頭 Male Hose Barb Elbow
| 產品編號 | 管牙 | 適用管徑 | L1 | L2 | L3 | SW | I.D. |
| Part No. | Pipe Thread T | TubeSize D | |||||
| A01-L101 | 1/8 | 1/8 | 18.5 | 21.5 | 14 | 9.5 | 2 |
| A01-L1015 | 1/8 | 3/16 | 18.5 | 22 | 14.5 | 9.5 | 3 |
| A01-L102 | 1/8 | 1/4 | 18.5 | 27 | 20 | 9.5 | 4 |
| A01-L1025 | 1/8 | 5/16 | 18.5 | 27 | 20 | 9.5 | 5.5 |
| A01-L103 | 1/8 | 3/8 | 18.5 | 27 | 19.2 | 9.5 | 5.5 |
| A01-L202 | 1/4 | 1/4 | 23.4 | 30.5 | 20 | 11.5 | 4 |
| A01-L2025 | 1/4 | 5/16 | 23.4 | 30.6 | 20 | 11.5 | 5.5 |
| A01-L203 | 1/4 | 3/8 | 23.4 | 31.5 | 20 | 11.5 | 7 |
| A01-L204 | 1/4 | 1/2 | 22.5 | 31.1 | 20 | 13 | 8 |
| A01-L205 | 1/4 | 5/8 | 23.4 | 35.6 | 20.5 | 15 | 8 |
| A01-L302 | 3/8 | 1/4 | 24.2 | 30.7 | 20 | 11 | 4 |
| A01-L3025 | 3/8 | 5/16 | 24.2 | 30.7 | 20 | 11 | 5.5 |
| A01-L303 | 3/8 | 3/8 | 24.2 | 30.7 | 20 | 11 | 7 |
| A01-L304 | 3/8 | 1/2 | 25.8 | 33.8 | 20 | 15 | 9.5 |
| A01-L305 | 3/8 | 5/8 | 25.4 | 35.5 | 20.5 | 15 | 10.5 |
| A01-L402 | 1/2 | 1/4 | 30.8 | 33.3 | 20 | 15 | 4 |
| A01-L4025 | 1/2 | 5/16 | 30.8 | 33.3 | 20 | 15 | 5.5 |
| A01-L403 | 1/2 | 3/8 | 30.8 | 33.3 | 20 | 15 | 7 |
| A01-L404 | 1/2 | 1/2 | 30.8 | 33.8 | 20 | 15 | 9.5 |
| A01-L405 | 1/2 | 5/8 | 30.4 | 35.5 | 20.5 | 15 | 11 |
| A01-L406 | 1/2 | 3/4 | 31.4 | 42.5 | 25.5 | 17 | 13 |
| A01-L604 | 3/4 | 1/2 | 34.3 | 42.8 | 26 | 25.5 | 8 |
| A01-L605 | 3/4 | 5/8 | 34.3 | 49.8 | 32.5 | 25.5 | 11 |
| A01-L606 | 3/4 | 3/4 | 34.3 | 49.8 | 32.5 | 25.5 | 14 |
| A01-L608 | 3/4 | 1" | 34.3 | 50.3 | 32.5 | 25.5 | 19 |
| A01-L806 | 1" | 3/4 | 43.8 | 49.8 | 32.5 | 31.5 | 14 |
| A01-L808 | 1" | 1" | 43.8 | 49.8 | 32.5 | 31.5 | 19 |
| A01-L8082 | 1" | 1-1/4" | 43.8 | 49.8 | 30.9 | 31.5 | 24 |
