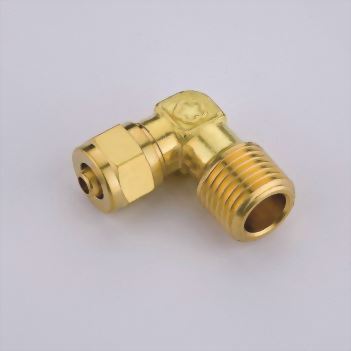

Male Elbow

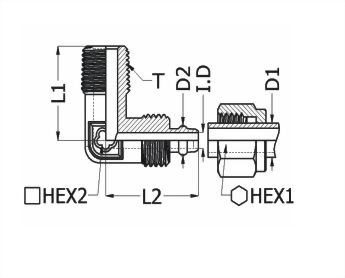

N06 外牙彎頭-公制 MALE ELBOW
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | D2 | L1 | L2 | SW1 | SW2 | I.D. |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | ||||||
| N06-L05006 | 1/4-28UNF | 6 | M10-24 | 5.5 | 16.5 | 20 | 12 | 8.5 | 3 |
| N06-L0506 | M5 | 6 | M10-24 | 5.5 | 15 | 20 | 12 | 8.5 | 2.8 |
| N06-L1004 | 1/8 | 4 | M7*1.0 | 3.75 | 18 | 18 | 9 | 8.5 | 1.8 |
| N06-L1006 | 1/8 | 6 | M10-24 | 5.5 | 18 | 20 | 12 | 8.5 | 3 |
| N06-LM1025 | 1/8 | 8 | 7/16-24 | 6.9 | 18 | 21 | 14 | 8.5 | 4.5 |
| N06-L1010 | 1/8 | 10 | 1/2-24 | 8.25 | 18 | 24 | 15 | 8.5 | 5 |
| N06-L2004 | 1/4 | 4 | M7*1.0 | 3.75 | 23 | 20 | 9 | 10 | 1.8 |
| N06-LM2006 | 1/4 | 6 | M10-24 | 5.5 | 23 | 22 | 12 | 10 | 3 |
| N06-LM2025 | 1/4 | 8 | 7/16-24 | 6.9 | 23 | 22.5 | 14 | 10 | 4.5 |
| N06-LM2010 | 1/4 | 10 | 1/2-24 | 8.25 | 23 | 24 | 15 | 10 | 5.2 |
| N06-LM2012 | 1/4 | 12 | M17-24 | 10.1 | 24.5 | 26.5 | 19 | 12 | 7 |
| N06-LM3006 | 3/8 | 6 | M10-24 | 5.5 | 23 | 23 | 12 | 12 | 3 |
| N06-LM3025 | 3/8 | 8 | 7/16-24 | 6.9 | 23 | 23.5 | 14 | 12 | 4.5 |
| N06-LM3010 | 3/8 | 10 | 1/2-24 | 8.25 | 23 | 25.5 | 15 | 12 | 5.2 |
| N06-LM3012 | 3/8 | 8 | M17-24 | 10.1 | 24.2 | 28.5 | 19 | 12 | 7 |
| N06-LM4006 | 1/2 | 6 | M10-24 | 5.5 | 28.5 | 25.5 | 12 | 14 | 3 |
| N06-LM4025 | 1/2 | 8 | 7/16-24 | 6.9 | 28.5 | 27 | 14 | 14 | 4.5 |
| N06-LM4010 | 1/2 | 10 | 1/2-24 | 8.25 | 28.5 | 27 | 15 | 14 | 5.2 |
| N06-LM4012 | 1/2 | 12 | M17-24 | 10.1 | 28.5 | 29.5 | 19 | 14 | 7 |
N06 外牙彎頭-英制 MALE ELBOW
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | D2 | L1 | L2 | SW1 | SW2 | I.D. |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | ||||||
| N06-L0502 | 1/4-28UNF | 1/4 | M10-24 | 5.5 | 16.5 | 20 | 12 | 8.5 | 3 |
| N06-L052 | M5 | 1/4 | M10-24 | 5.5 | 15 | 20 | 12 | 8.5 | 2.8 |
| N06-L102 | 1/8 | 1/4 | M10-24 | 5.5 | 18 | 20 | 12 | 8.5 | 3 |
| N06-L1025 | 1/8 | 5/16 | 7/16-24 | 6.9 | 18 | 21 | 14 | 8.5 | 4.5 |
| N06-LM103 | 1/8 | 3/8 | 1/2-24 | 8.25 | 18 | 24 | 15 | 8.5 | 5 |
| N06-L202 | 1/4 | 1/4 | M10-24 | 5.5 | 23 | 22 | 12 | 10 | 3 |
| N06-L2025 | 1/4 | 5/16 | 7/16-24 | 6.9 | 23 | 22.5 | 14 | 10 | 4.5 |
| N06-LM203 | 1/4 | 3/8 | 1/2-24 | 8.25 | 23 | 24 | 15 | 10 | 5.2 |
| N06-LM204 | 1/4 | 1/2 | M17-24 | 10.7 | 24.5 | 26.5 | 19 | 12 | 7 |
| N06-LM302 | 3/8 | 1/4 | M10-24 | 5.5 | 23 | 23 | 12 | 12 | 3 |
| N06-LM3025 | 3/8 | 5/16 | 7/16-24 | 6.9 | 23 | 23.5 | 14 | 12 | 4.5 |
| N06-LM303 | 3/8 | 3/8 | 1/2-24 | 8.25 | 23 | 25.5 | 15 | 12 | 5.2 |
| N06-LM304 | 3/8 | 1/2 | M17-24 | 10.7 | 24.2 | 28.5 | 19 | 12 | 7 |
| N06-LM402 | 1/2 | 1/4 | M10-24 | 5.5 | 28.5 | 25.5 | 12 | 14 | 3 |
| N06-LM4025 | 1/2 | 5/16 | 7/16-24 | 6.9 | 28.5 | 27 | 14 | 14 | 4.5 |
| N06-LM403 | 1/2 | 3/8 | 1/2-24 | 8.25 | 28.5 | 27 | 15 | 14 | 5.2 |
| N06-LM404 | 1/2 | 1/2 | M17-24 | 10.7 | 28.5 | 29.5 | 19 | 14 | 8 |
