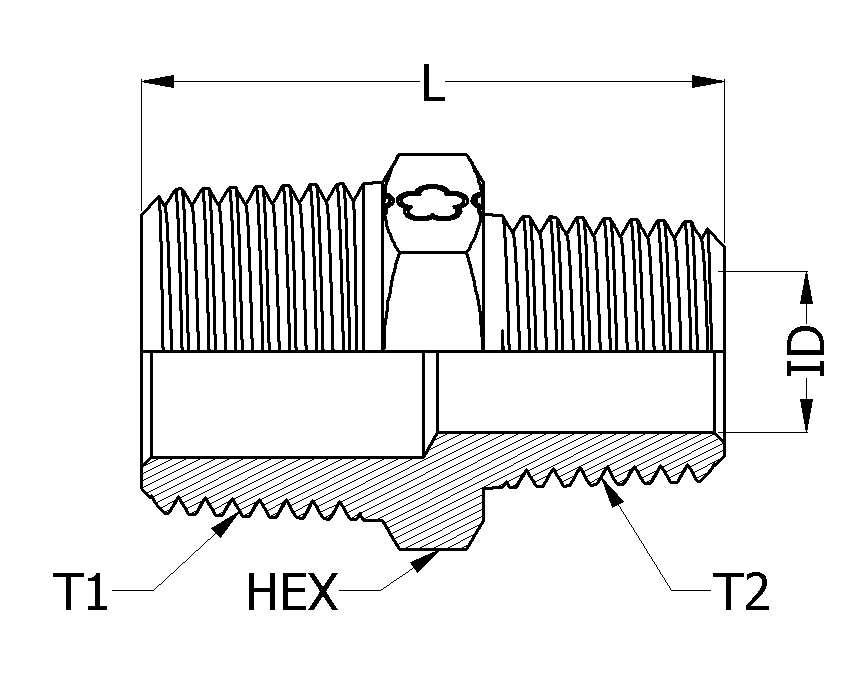

Nipple
E02 雙外牙接頭 Nipple
| 產品編號 | 管牙 T1 | 內管牙 T2 | L | HEX | I.D |
| Part No. | Pipe Thread T1 | Pipe Thread T2 | |||
| E02-C101 | 1/8 | 1/8 | 23 | 10 | 6.1 |
| E02-C201 | 1/4 | 1/8 | 26 | 14 | 6.1 |
| E02-C202 | 1/4 | 1/4 | 29 | 14 | 8 |
| E02-C301 | 3/8 | 1/8 | 26 | 17 | 5.5 |
| E02-C302 | 3/8 | 1/4 | 29 | 17 | 8 |
| E02-C303 | 3/8 | 3/8 | 29 | 17 | 10.5 |
| E02-C401 | 1/2 | 1/8 | 29.5 | 21 | 5.5 |
| E02-C402 | 1/2 | 1/4 | 32.5 | 21 | 8 |
| E02-C403 | 1/2 | 3/8 | 32.5 | 21 | 10.5 |
| E02-C404 | 1/2 | 1/2 | 35 | 21 | 14 |
| E02-C602 | 3/4 | 1/4 | 34 | 27 | 8 |
| E02-C603 | 3/4 | 3/8 | 34 | 27 | 10.5 |
| E02-C604 | 3/4 | 1/2 | 36.5 | 27 | 14 |
| E02-C606 | 3/4 | 3/4 | 37 | 27 | 19 |
| E02-C804 | 1' | 1/2 | 40 | 34 | 14 |
| E02-C806 | 1' | 3/4 | 40.5 | 34 | 19 |
| E02-C808 | 1' | 1' | 43 | 34 | 24 |
E02 加長型雙外牙接頭 Long Nipple
| 產品編號 | 管牙 T1 | 內管牙 T2 | L | HEX | I.D |
| Part No. | Pipe Thread T1 | Pipe Thread T2 | |||
| E02-2-2-40 | 1/4 | 1/4 | 40 | 14 | 8 |
