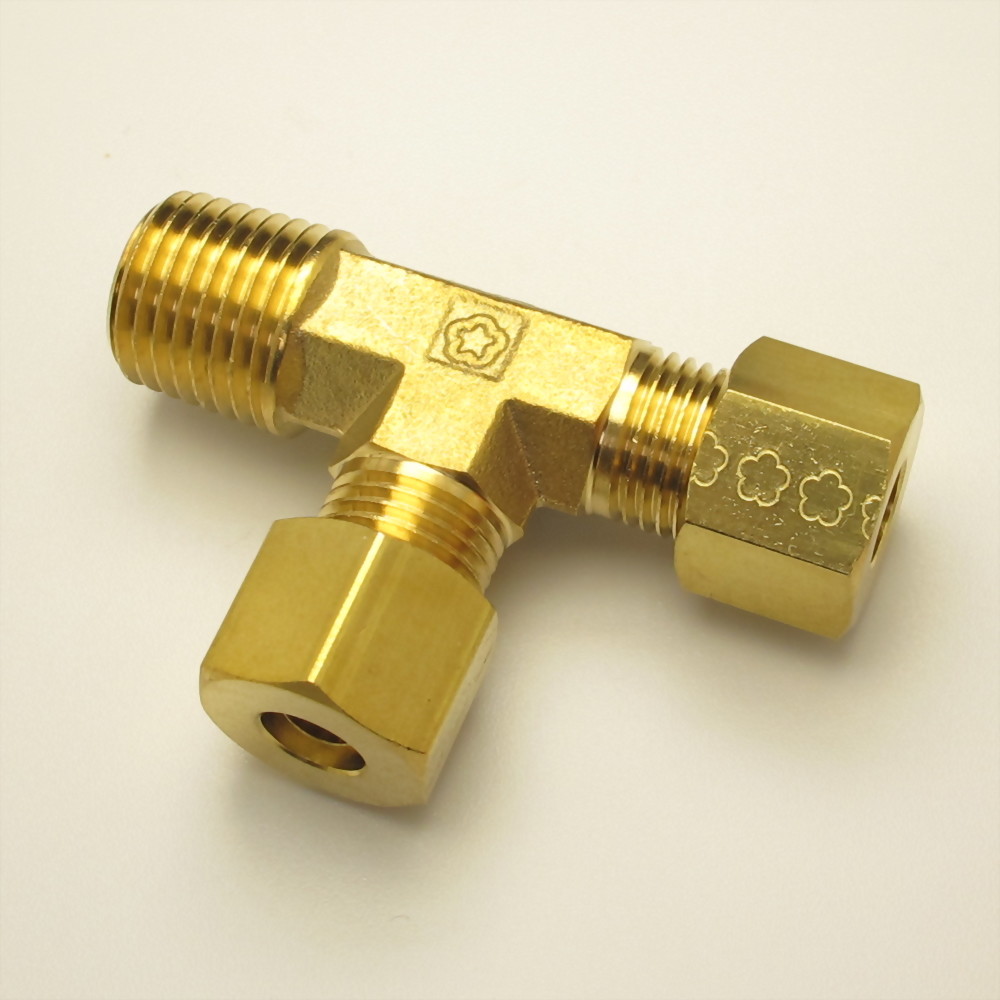

RUN TEE
S10 牙邊三通-公制 RUN TEE
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L1 | L2 | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| S10-T1006 | 1/8 | 6 | 7/16-24 | 5.5 | 18.5 | 18 | 14 | 9.5 |
| S10-T1025 | 1/8 | 8 | 1/2-24 | 5.5 | 19 | 19.2 | 16 | 11 |
| S10-T2006 | 1/4 | 6 | 7/16-24 | 5.5 | 23 | 18 | 14 | 11 |
| S10-T2025 | 1/4 | 8 | 1/2-24 | 7 | 23 | 19.2 | 16 | 11 |
| S10-T2010 | 1/4 | 10 | 9/16-24 | 8 | 23 | 21 | 17 | 12 |
| S10-T2012 | 1/4 | 12 | 11/16-20 | 8 | 25 | 25 | 21 | 15 |
| S10-T3006 | 3/8 | 6 | 7/16-24 | 5.5 | 26.5 | 20.5 | 14 | 15 |
| S10-T3025 | 3/8 | 8 | 1/2-24 | 7 | 26.5 | 21 | 16 | 15 |
| S10-T3010 | 3/8 | 10 | 9/16-24 | 8 | 26.5 | 21.5 | 17 | 15 |
| S10-T4006 | 1/2 | 6 | 7/16-24 | 5.5 | 32 | 22 | 14 | 17 |
| S10-T4025 | 1/2 | 8 | 1/2-24 | 7 | 32 | 22.5 | 16 | 17 |
| S10-T4010 | 1/2 | 10 | 9/16-24 | 8 | 32 | 23 | 17 | 17 |
S10 牙邊三通-英制 RUN TEE
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L1 | L2 | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| S10-T102 | 1/8 | 1/4 | 7/16-24 | 5.5 | 18.5 | 18 | 14 | 9.5 |
| S10-T1025 | 1/8 | 5/16 | 1/2-24 | 5.5 | 19 | 19.2 | 16 | 11 |
| S10-T103 | 1/8 | 3/8 | 9/16-24 | 5.5 | 20.5 | 21 | 17 | 12 |
| S10-T202 | 1/4 | 1/4 | 7/16-24 | 5.5 | 23 | 18 | 14 | 11 |
| S10-T2025 | 1/4 | 5/16 | 1/2-24 | 7 | 23 | 19.2 | 16 | 11 |
| S10-T203 | 1/4 | 3/8 | 9/16-24 | 8 | 23 | 21 | 17 | 12 |
| S10-T204 | 1/4 | 1/2 | 11/16-20 | 8 | 25 | 25 | 21 | 15 |
| S10-T302 | 3/8 | 1/4 | 7/16-24 | 5.5 | 26.5 | 20.5 | 14 | 15 |
| S10-T3025 | 3/8 | 5/16 | 1/2-24 | 5.5 | 26.5 | 20.5 | 14 | 15 |
| S10-T303 | 3/8 | 3/8 | 9/16-24 | 7 | 26.5 | 21 | 16 | 15 |
| S10-T304 | 3/8 | 1/2 | 11/16-20 | 10.5 | 26.5 | 25 | 21 | 15 |
| S10-T402 | 1/2 | 1/4 | 7/16-24 | 5.5 | 32 | 22 | 14 | 17 |
| S10-T4025 | 1/2 | 5/16 | 1/2-24 | 7 | 32 | 22.5 | 16 | 17 |
| S10-T403 | 1/2 | 3/8 | 9/16-24 | 8 | 32 | 23 | 17 | 17 |
| S10-T404 | 1/2 | 1/2 | 11/16-20 | 11 | 32 | 25 | 21 | 17 |
