Male Elbow

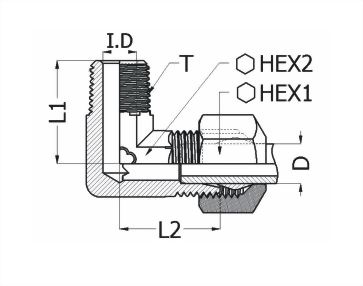

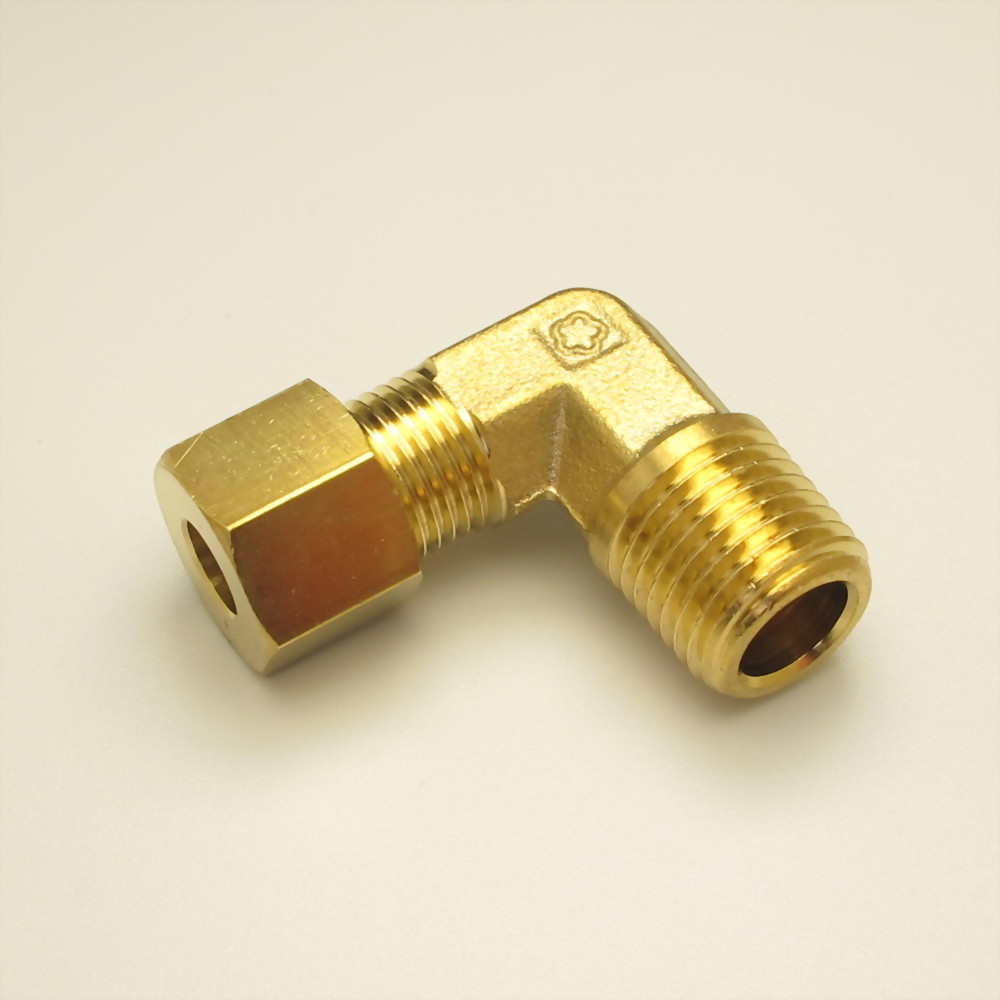

S07 外牙彎頭-公制 Male Elbow
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L1 | L2 | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| S07-L1004 | 1/8 | 4 | 5/16-24 | 3.5 | 18.5 | 15 | 9.5 | 9.5 |
| S07-L1005 | 1/8 | 5 | 3/8-24 | 4 | 18.5 | 15.5 | 12 | 9.5 |
| S07-L1006 | 1/8 | 6 | 7/16-24 | 5.5 | 18.5 | 17 | 14 | 9.5 |
| S07-L1025 | 1/8 | 8 | 1/2-24 | 5.5 | 18.6 | 18.4 | 16 | 11 |
| S07-L1010 | 1/8 | 10 | 9/16-24 | 5.5 | 20.5 | 21.5 | 17 | 13 |
| S07-L2004 | 1/4 | 4 | 5/16-24 | 3.5 | 23.5 | 17.1 | 9.5 | 11 |
| S07-L2005 | 1/4 | 5 | 3/8-24 | 4 | 23.5 | 17.1 | 12 | 11 |
| S07-L2006 | 1/4 | 6 | 7/16-24 | 5.5 | 23.5 | 18.1 | 14 | 11 |
| S07-L2025 | 1/4 | 8 | 1/2-24 | 7 | 23.5 | 18.7 | 16 | 11 |
| S07-L2010 | 1/4 | 10 | 9/16-24 | 8 | 24 | 21.5 | 17 | 13 |
| S07-L2012 | 1/4 | 12 | 11/16-20 | 8 | 24 | 23 | 21 | 13 |
| S07-L3006 | 3/8 | 6 | 7/16-24 | 5.5 | 26.5 | 19 | 14 | 13 |
| S07-L3025 | 3/8 | 8 | 1/2-24 | 7 | 26.5 | 19.5 | 16 | 13 |
| S07-L3010 | 3/8 | 10 | 9/16-24 | 8 | 26.5 | 21.5 | 17 | 13 |
| S07-L3012 | 3/8 | 12 | 11/16-20 | 9 | 26.5 | 23 | 21 | 13 |
| S07-L4006 | 1/2 | 6 | 7/16-24 | 5.5 | 30.3 | 22.3 | 14 | 15 |
| S07-L4025 | 1/2 | 8 | 1/2-24 | 7 | 30.3 | 22.8 | 16 | 15 |
| S07-L4010 | 1/2 | 10 | 9/16-24 | 8 | 30.3 | 23.3 | 17 | 15 |
| S07-L4012 | 1/2 | 12 | 11/16-20 | 11 | 30.3 | 25.3 | 21 | 15 |
| S07-L40M15 | 1/2 | 15 | 13/16-18 | 13 | 34.7 | 29.7 | 24 | 17 |
S07 外牙彎頭-英制 Male
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L1 | L2 | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| S07-L101 | 1/8 | 1/8 | 5/16-24 | 3 | 18.5 | 15 | 9.5 | 9.5 |
| S07-L1015 | 1/8 | 3/16 | 3/8-24 | 4 | 18.5 | 15.5 | 12 | 9.5 |
| S07-L102 | 1/8 | 1/4 | 7/16-24 | 5.5 | 18.5 | 17 | 14 | 9.5 |
| S07-L1025 | 1/8 | 5/16 | 1/2-24 | 5.5 | 18.6 | 18.4 | 16 | 11 |
| S07-L103 | 1/8 | 3/8 | 9/16-24 | 5.5 | 20.5 | 21.5 | 17 | 13 |
| S07-L201 | 1/4 | 1/8 | 5/16-24 | 3 | 23.5 | 17.1 | 9.5 | 11 |
| S07-L2015 | 1/4 | 3/16 | 3/8-24 | 4 | 23.5 | 17.1 | 12 | 11 |
| S07-L202 | 1/4 | 1/4 | 7/16-24 | 5.5 | 23.5 | 18.1 | 14 | 11 |
| S07-L2025 | 1/4 | 5/16 | 1/2-24 | 7 | 23.5 | 18.7 | 16 | 11 |
| S07-L203 | 1/4 | 3/8 | 9/16-24 | 8 | 24 | 21.5 | 17 | 13 |
| S07-L204 | 1/4 | 1/2 | 11/16-20 | 8 | 24 | 23 | 21 | 13 |
| S07-L302 | 3/8 | 1/4 | 7/16-24 | 5.5 | 26.5 | 19 | 14 | 13 |
| S07-L3025 | 3/8 | 5/16 | 1/2-24 | 7 | 26.5 | 19.5 | 16 | 13 |
| S07-L303 | 3/8 | 3/8 | 9/16-24 | 8 | 26.5 | 21.5 | 17 | 13 |
| S07-L304 | 3/8 | 1/2 | 11/16-20 | 9 | 26.5 | 23 | 21 | 13 |
| S07-L305 | 3/8 | 5/8 | 13/16-18 | 10.5 | 28.8 | 25.8 | 24 | 15 |
| S07-L402 | 1/2 | 1/4 | 7/16-24 | 5.5 | 30.3 | 22.3 | 14 | 15 |
| S07-L4025 | 1/2 | 5/16 | 1/2-24 | 7 | 30.3 | 22.8 | 16 | 15 |
| S07-L403 | 1/2 | 3/8 | 9/16-24 | 8 | 30.3 | 23.3 | 17 | 15 |
| S07-L404 | 1/2 | 1/2 | 11/16-20 | 11 | 30.3 | 25.3 | 21 | 15 |
| S07-L405 | 1/2 | 5/8 | 13/16-18 | 13 | 34.7 | 29.7 | 24 | 17 |
