FEMALE ELBOW

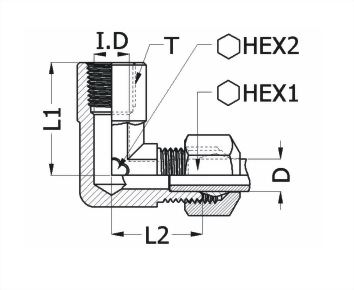

S08 內牙彎頭-公制 FEMALE ELBOW
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L1 | L2 | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| S08-LM1006 | 1/8 | 6 | 7/16-24 | 5.5 | 22.7 | 18.1 | 14 | 11 |
| S08-LM1025 | 1/8 | 8 | 1/2-24 | 7 | 23.2 | 18.7 | 16 | 11 |
| S08-LM1010 | 1/8 | 10 | 9/16-24 | 8 | 24 | 21.5 | 17 | 13 |
| S08-LM2006 | 1/4 | 6 | 7/16-24 | 5.5 | 26.5 | 19 | 14 | 13 |
| S08-LM2025 | 1/4 | 8 | 1/2-24 | 7 | 26.5 | 19.5 | 16 | 13 |
| S08-LM2010 | 1/4 | 10 | 9/16-24 | 8 | 26.5 | 21.5 | 17 | 13 |
| S08-LM3025 | 3/8 | 8 | 1/2-24 | 7 | 29..3 | 22.8 | 16 | 15 |
| S08-LM3010 | 3/8 | 10 | 9/16-24 | 8 | 29.3 | 23.3 | 17 | 15 |
S08 內牙彎頭-英制 FEMALE ELBOW
| 產品編號 | 內管牙T | 適用管徑D1 | 直牙 | I.D. | L1 | L2 | SW1 | SW2 |
| Part No. | Pipe Thread T | Tube Size D1 | Thread | |||||
| S08-LM102 | 1/8 | 1/4 | 7/16-24 | 5.5 | 22.7 | 18.1 | 14 | 11 |
| S08-LM1025 | 1/8 | 5/16 | 1/2-24 | 7 | 23.2 | 18.7 | 16 | 11 |
| S08-LM103 | 1/8 | 3/8 | 9/16-24 | 8 | 24 | 21.5 | 17 | 13 |
| S08-LM202 | 1/4 | 1/4 | 7/16-24 | 5.5 | 26.5 | 19 | 14 | 13 |
| S08-LM2025 | 1/4 | 5/16 | 1/2-24 | 7 | 26.5 | 19.5 | 16 | 13 |
| S08-LM203 | 1/4 | 3/8 | 9/16-24 | 8 | 26.5 | 31.5 | 17 | 13 |
| S08-LM204 | 1/4 | 1/2 | 11/16-20 | 9 | 26.5 | 23 | 21 | 13 |
| S08-LM3025 | 3/8 | 5/16 | 1/2-24 | 7 | 29.3 | 22.8 | 16 | 15 |
| S08-LM303 | 3/8 | 3/8 | 9/16-24 | 8 | 29.3 | 22.3 | 17 | 15 |
| S08-LM304 | 3/8 | 1/2 | 11/16-20 | 11 | 29.3 | 25.3 | 21 | 15 |
